Wireless Set No. 62 Mk II
Click on images for larger view.
Calibrator, Crystal No 10 can be found further down the page.

ws62

Wireless Set No. 62 Mk II in fully working order.

name tag

Model and Serial number plate.

WS62 Aerial Base

Aerial base and whip stabilising bracket/insulator on the side of the case.



key

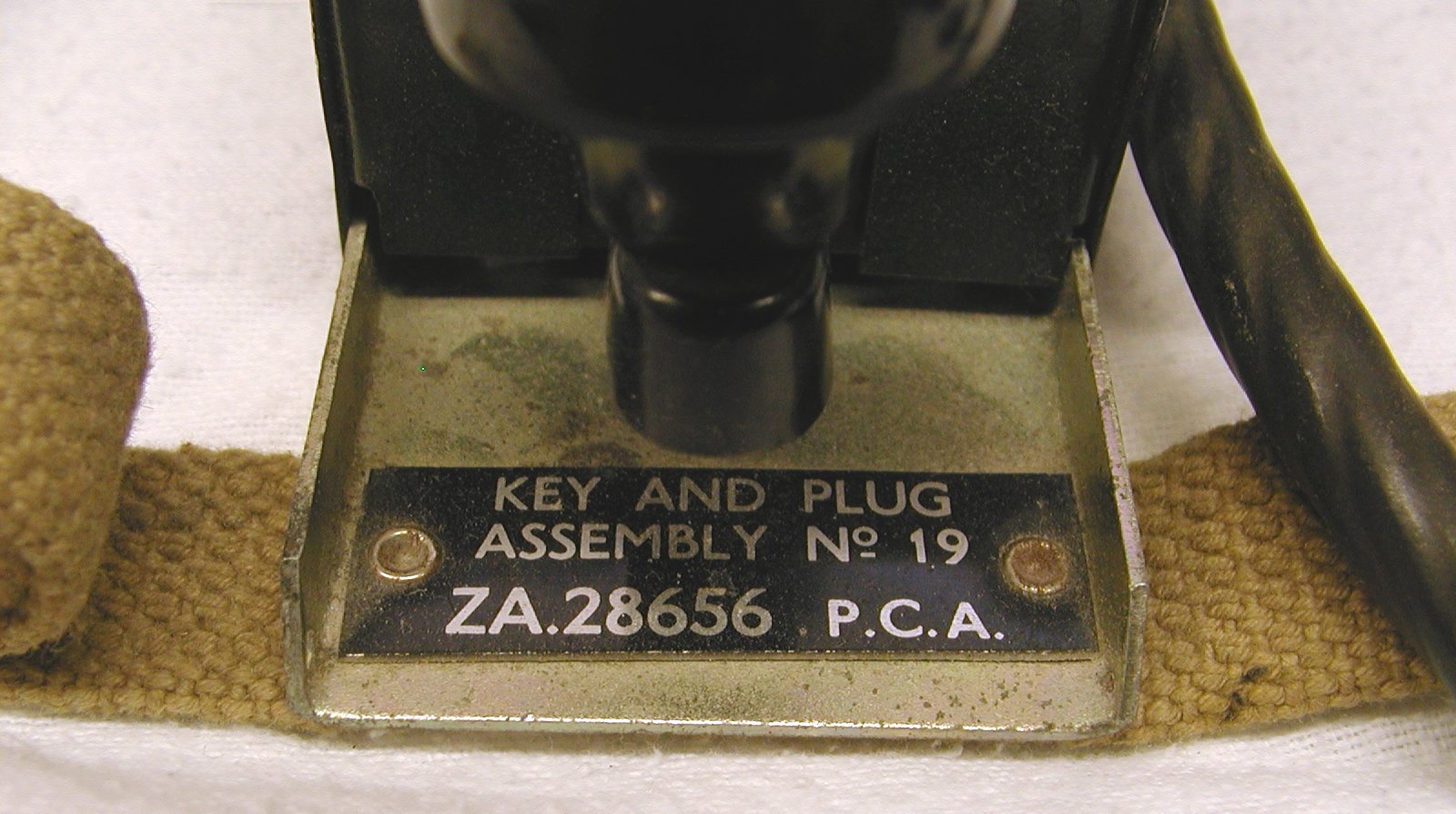

Key and Plug Assy No 19, P/N ZA28656



op lamp DC Cable

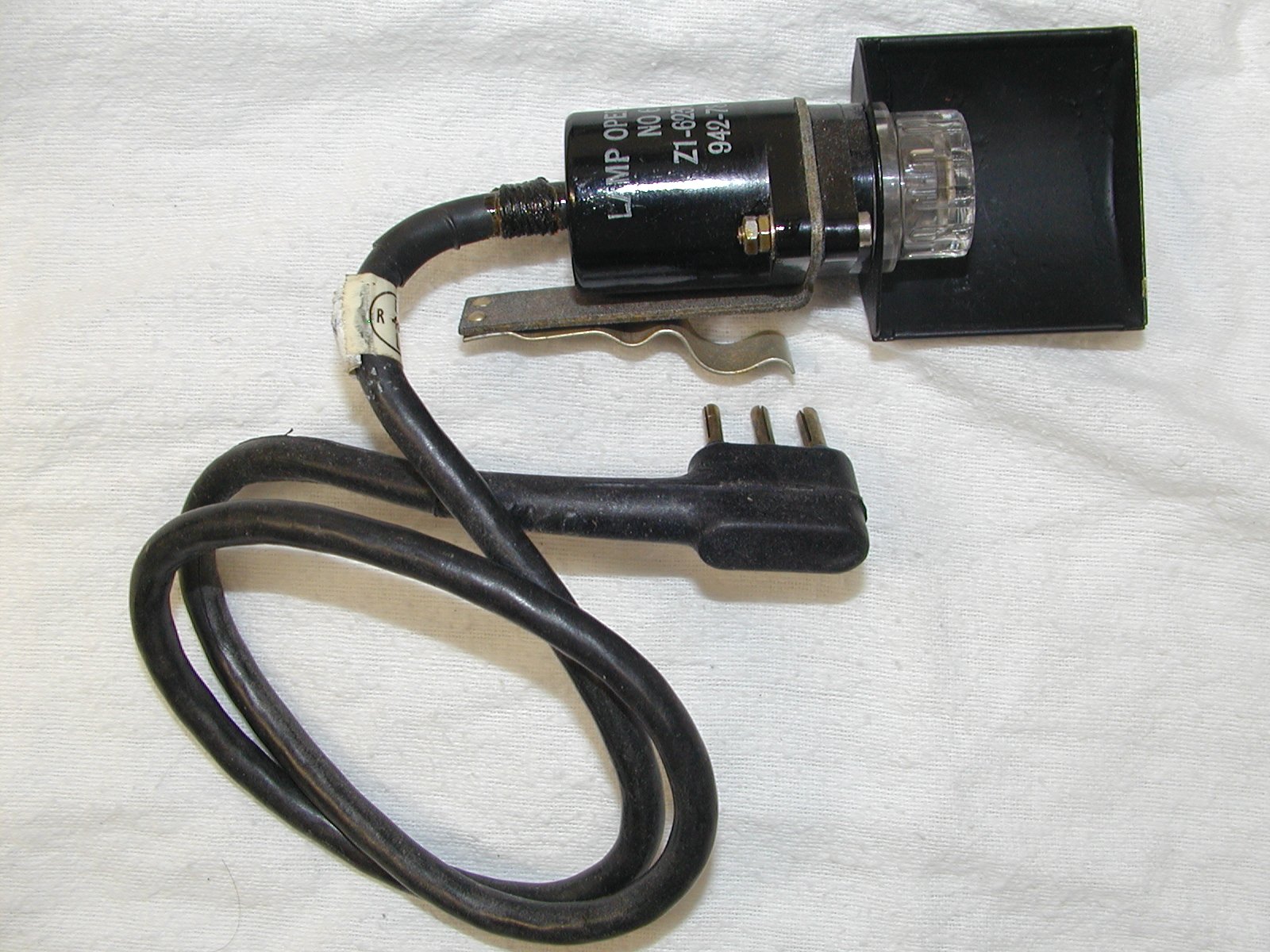

Operator's Lamp No. 6B
Wireless Set No. 62 DC Power cable
with Niphan battery plug, P/N - ZA28364



head set
head set

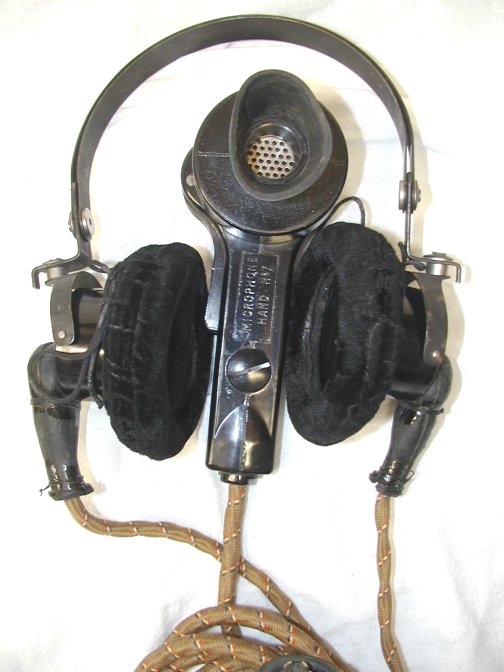

No 7 Hand Mic and Headphones



Upper Chassis view

chassis
chassis
chassis

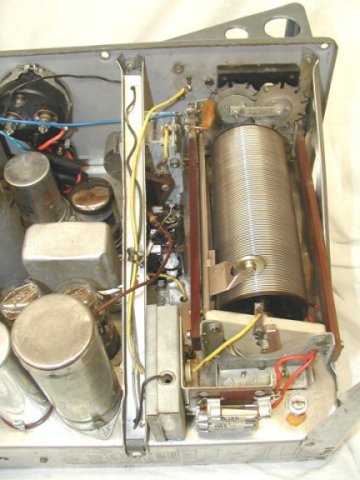

Upper Chassis close up of sections

chassis

Under Chassis View - Screening Plate in place

chassis

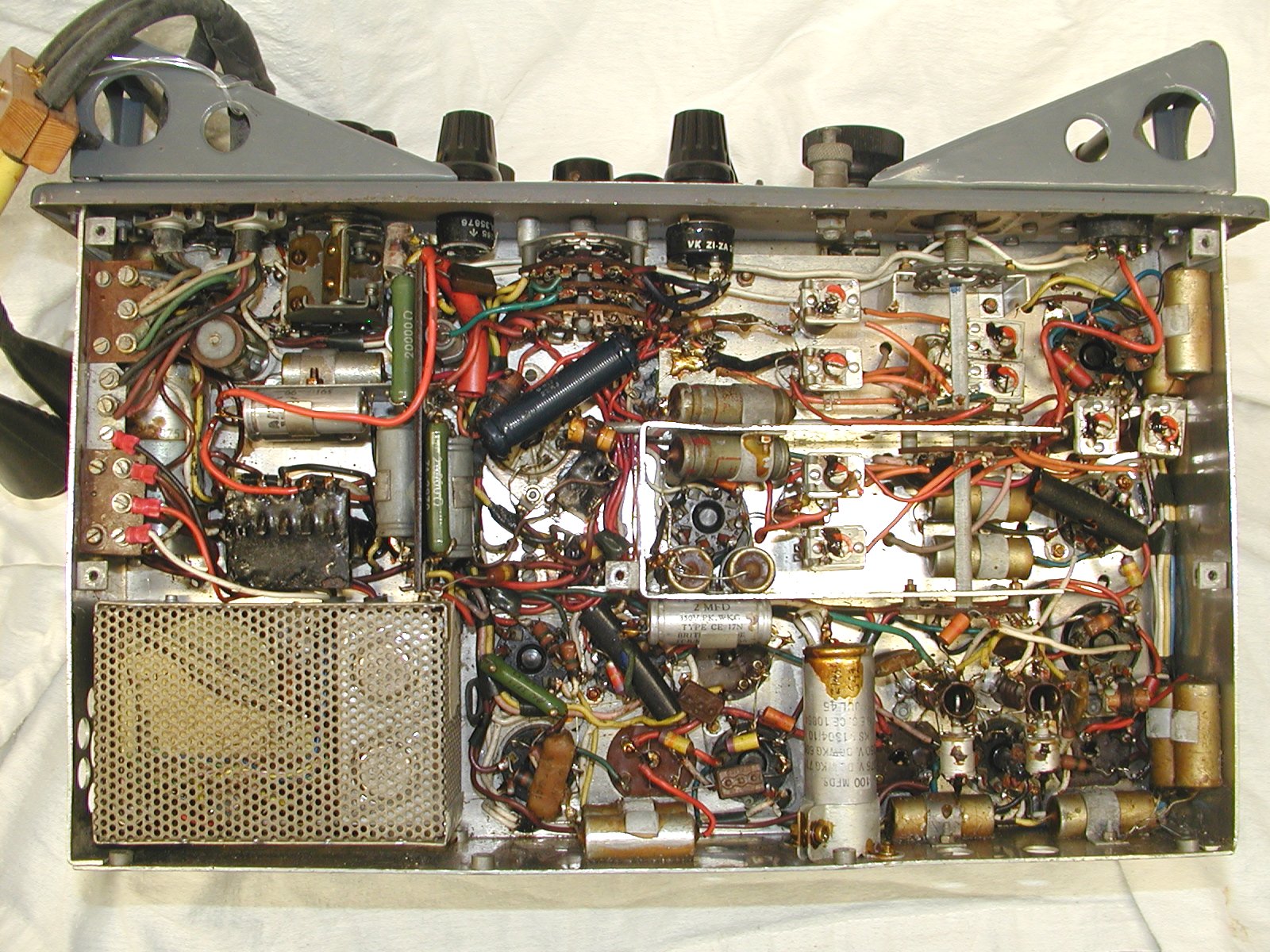

Under Chassis View - Screening Plate removed

psu
Dynamotor

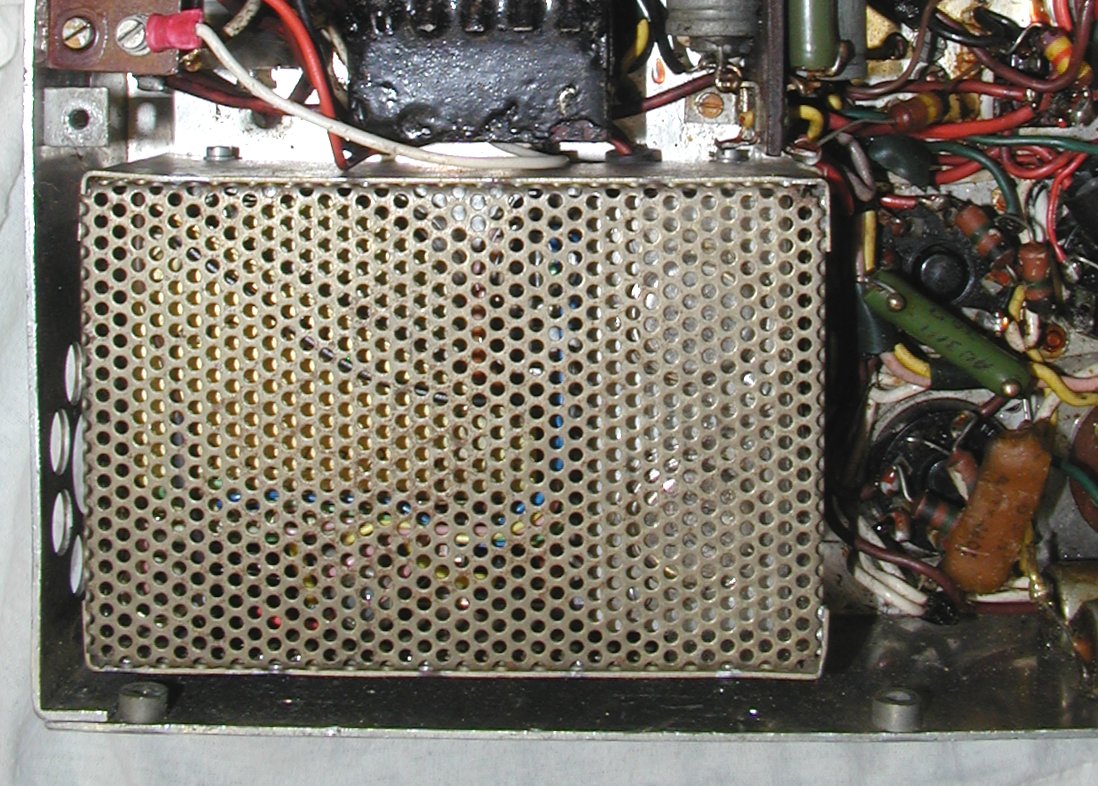

Pye Transistor PSU that replaced the Dynamotor PSU

Dynamotor PSU that tended to have a short life span.



chassis
chassis
chassis

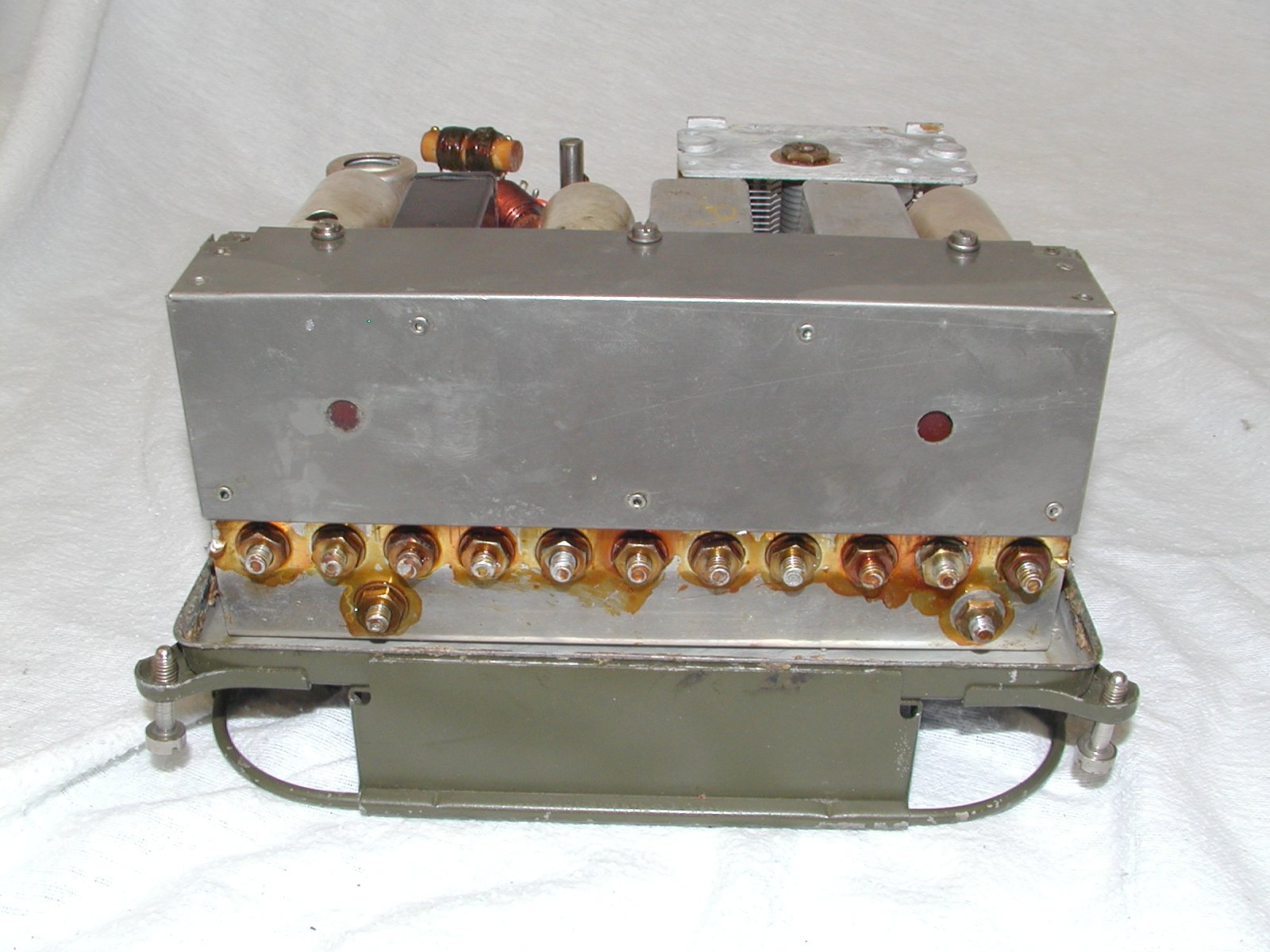

Under Chassis close up views - The large vertical capacitor bolted to the back of the chassis is a 100uf capacitor
that is in the heater circuit that causes chronic whine on the transmit audio if it is anything less than good.



Calibrator, Crystal No 10

10 calCal 10 DC Cable

Calibrator, Crystal No 10 and its three pin power cable.

Cal 10 chassis
Back inside view
Cal 10 chassis
Back inside view of calibrator showing
the valves and tuning.
Cal 10 chassis
Cal 10 chassis
What look like rows of bolts are actually all
the capacitors bolted to the chassis.

Calibrator, Crystal No 10 internal view

Wireless Set No. 62 Documentation available from our group's archive.

Number
Equipment Title
42
Wireless Set No 62 Car 5 cwt & Animal Pack/Man Pack, Fitting & loading Instructions, APR 1945
99
Wireless Set No 62 Working Instructions, ZA27690, Oct 1945, Reprinted Sep 1953
105
Wireless Set No 62 Technical Handbook & Parts List, Issue 1, Part No 202462
419
Wireless Set No 62 Mk 1 and Mk 2 Identification List for Wireless Set No.62 Mk 1 and Mk 2, W.O. Code 5617, Jun 1950
420
Wireless Set No 62 Wireless Set No.62 Data Summary, EMER TELS F640, Jul 1945
421
Wireless Set No 62 Mk 1 and Mk 2 Wireless Set No.62 Mk1 and Mk2, EMER TELS F642, Jun 1946
422
Wireless Set No 62 Wireless Set No.62, Technical Handbook, Unit Repairs, EMER TELS F643
423
Wireless Set No 62 Wireless Set No.62, Second to Forth Echelon Work, EMER TELS F644, Mar 1947
424
Wireless Set No 62 Mk 1 Wireless Set No.62 Mk1, Technical Handbook, Modification Instructions, EMER TELS F647
425
Wireless Set No 62 Mk 1 and Mk 2 Wireless Set No.62 Mk1 and Mk2, Service Data, First Echelon, EMER TELS F649, Mar 1947
1718
Wireless Set No 62 Aerial Tuning Plate, ZA323307.
529
Wireless Set No 62 General Description, From Govt. Surplus Wireless Equipment Handbook
1086
Wireless Set No 62 Notes on WS62, thought to be School of Signals, DN 6334/1, undated
1829
Wireless Set No 62 Supplement to Pye Wireless Set No 62, Technical Handbook (Issue 1) Transistor Power Supply Unit.
2065
Wireless Set No 62 Mk 6 ZA 53566 Airborne Dry Battery use
110 Calibrator, Crystal No. 10
2066
Calibrator, Crystal No. 10 Amendments to Crystal Calibrator No 10, Tels Y672/5 amended to T & M Z642
2068
Calibrator, Crystal No. 10 Crystal Calibrator for Pye WS C12 and WS62, Technical Handbook Issue 1 Part No. 202491
